4.6. ws3 Parallel Model Building + HiGHS (highspy) — Hands-On
This notebook shows how to:
Build a
ws3optimization problem model in both serial and parallel modes.Solve the problem with HiGHS via the
highspybindings.Measure wall time to find the parallel parameter sweet spot.
Note that we test building and solving a ws3 optimization on up to 64 cores in this notebook. Obviously this will not work as intended if you have fewer than 64 cores available in the environment in which you run this code. Use common sense in interpreting output.
4.6.1. Set up environment
Below we (optionally) install the ws3 package from the local source code in this repository using the -e flag to ensure that the package is installed in editable mode (i.e., any changes you make to the source code immediately affect ws3 behaviour the next time you run the notebook). This is is not necessary if you have installed ws3 using pip or another method.
Note that the code in this notebook has been tested with the version of the ws3 package that is included in this repository.
Set auto-reload to reload modules when they are changed.
[1]:
%load_ext autoreload
%autoreload 2
[2]:
clobber_ws3 = False
if clobber_ws3:
%pip uninstall -y ws3
%pip install -e ..
4.6.2. Step 0: Setup
On Linux, fork is the default (fastest). For Windows/macOS (and portable scripts), set spawn.
[3]:
import os, sys, time, platform, cProfile, pstats, io
import ws3
from ws3 import opt, forest
import highspy
# (Optional) force a portable start method in your launcher if needed:
# ws3.forest.MP_CONTEXT = "spawn"
4.6.3. Step 1: Load data and configure model
Set some reasonable model parameters.
[4]:
base_year = 2020 # base year for the problem
horizon = 20 # number of periods in the simulation horizon
period_length = 10 # period length (in years)
max_age = 1000 # maximum age of a stand (in years)
tvy_name = "totvol" # name for total volume yield component
Create a new ForestModel object and import a model dataset from the data directory.
[5]:
fm = ws3.forest.ForestModel(model_name="tsa24",
model_path="data/woodstock_model_files_tsa24",
base_year=base_year,
horizon=horizon,
period_length=period_length,
max_age=max_age)
fm.import_landscape_section()
fm.import_areas_section(convert_periods_to_years=period_length)
fm.import_yields_section(convert_periods_to_years=period_length)
fm.import_actions_section(convert_periods_to_years=period_length)
fm.import_transitions_section(convert_periods_to_years=period_length)
fm.initialize_areas()
fm.add_null_action()
fm.reset_actions()
fm.actions["harvest"].is_harvest = True # set harvest action to be a harvest action (needed for `cmp_c_z` to work correctly)
[6]:
import time
import functools
from util import cmp_c_z, cmp_c_caa, cmp_c_ci
from util import compile_scenario, plot_scenario
[7]:
acodes = ("null", "harvest")
expr = "0.85 * totvol"
# Row builders / coefficient functions (project-specific)
coeff_funcs = {
"z": functools.partial(cmp_c_z, expr=expr),
"cflw_hv": functools.partial(cmp_c_caa, expr=expr, acodes=["harvest"]),
"cflw_ha": functools.partial(cmp_c_caa, expr="1.", acodes=["harvest"]),
"cgen_gs" : functools.partial(cmp_c_ci, yname=tvy_name, mask=None)
}
# Flow-constraint epsilons and reference period
cflw_e = {
"cflw_hv": ({p:0.05 for p in fm.periods}, 1),
"cflw_ha": ({p:0.05 for p in fm.periods}, 1),
}
# General bounds (per period)
gs_lb_rhs = fm.inventory(0, "totvol") * 0.90 # 90% of initial growing stock level
cgen_data = {
"cgen_gs": {"lb":{10:gs_lb_rhs}, "ub":{10:999999999.}}}
Build and solve the problem with 1 core. You might want to open an interactive system terminal shell before running the rest of this notebook and keep an eye on memory allocation and CPU core activity while the model builds and solves (to get a realtime view of system resource utilization under different parameter values).
[8]:
workers = 1
[9]:
t0 = time.perf_counter()
problem = fm.add_problem(
name="test",
coeff_funcs=coeff_funcs,
cflw_e=cflw_e,
cgen_data=cgen_data,
acodes=acodes,
sense=ws3.opt.SENSE_MAXIMIZE,
mask=None,
workers=workers,
verbose=True
)
t1 = time.perf_counter()
print(f"Build time: {t1 - t0:.2f}s")
add_problem: build problem
generate trees using 1 workers
process trees
_bld_p_m1: build problem
_bld_p_m1: done building problem
add_problem: compile flow constraints
_cmp_cflw_m1: phase 1
_cmp_cflw_m1: phase 2
_cmp_cflw_m1: phase 3
add_problem: compile general constraints
Build time: 205.91s
Now we have a reference time for building the problem in serial mode.
We will also solve the problem with 1 core and compile and display the solution just to make sure the model is working correctly before proceeding to test various parallel model parameter values.
[10]:
problem.solve(verbose=True, threads=workers)
Running HiGHS 1.11.0 (git hash: 364c83a): Copyright (c) 2025 HiGHS under MIT licence terms
WARNING: LP matrix packed vector contains 3 |values| in [1.45519e-11, 1.45519e-11] less than or equal to 1e-09: ignored
WARNING: LP matrix packed vector contains 2 |values| in [4.54747e-13, 4.54747e-13] less than or equal to 1e-09: ignored
WARNING: LP matrix packed vector contains 1 |values| in [7.27596e-12, 7.27596e-12] less than or equal to 1e-09: ignored
WARNING: LP matrix packed vector contains 1 |values| in [1.45519e-11, 1.45519e-11] less than or equal to 1e-09: ignored
WARNING: LP matrix packed vector contains 2 |values| in [4.54747e-13, 1.45519e-11] less than or equal to 1e-09: ignored
LP has 7778 rows; 461956 cols; 10014103 nonzeros
Coefficient ranges:
Matrix [1e-03, 1e+07]
Cost [3e+00, 2e+07]
Bound [1e+00, 1e+00]
RHS [1e+00, 1e+09]
Presolving model
4476 rows, 458658 cols, 9697481 nonzeros 3s
Dependent equations search running on 4398 equations with time limit of 1000.00s
Dependent equations search removed 0 rows and 0 nonzeros in 0.02s (limit = 1000.00s)
4475 rows, 458658 cols, 9413474 nonzeros 5s
Presolve : Reductions: rows 4475(-3303); columns 458658(-3298); elements 9413474(-600629)
Solving the presolved LP
WARNING: Number of threads available = 1 < 8 = Simplex concurrency to be used: Parallel performance may be less than anticipated
Using EKK parallel dual simplex solver - SIP with concurrency of 8
Iteration Objective Infeasibilities num(sum)
0 0.0000000000e+00 Ph1: 0(0) 7s
72 -1.0611783165e+10 Pr: 4434(1.52937e+09); Du: 0(1.72505e-07) 133s
144 -8.3945478108e+09 Pr: 4386(2.55624e+08) 160s
447 -7.5791507202e+09 Pr: 4186(1.16792e+08) 165s
1374 -6.4218954439e+09 Pr: 3702(1.01576e+08) 170s
2441 -5.3558475700e+09 Pr: 3528(6.53618e+07) 176s
3299 -4.7823649957e+09 Pr: 3415(1.09355e+08) 181s
4183 -3.9937973149e+09 Pr: 3586(9.95246e+07) 186s
5945 -3.3607201147e+09 Pr: 3442(1.1896e+08) 191s
8392 -2.4218065109e+09 Pr: 2861(6.12309e+07); Du: 0(3.2306e-08) 197s
10886 -1.9272268074e+09 Pr: 2453(3.86569e+07) 202s
12740 -1.7360223742e+09 Pr: 2455(2.60278e+07) 208s
15022 -1.7049224331e+09 Pr: 2251(6.11247e+07); Du: 0(8.4082e-08) 213s
16937 -1.6728486671e+09 Pr: 2153(3.21198e+07) 218s
18965 -1.6112238062e+09 Pr: 2182(2.64841e+07) 224s
21024 -1.5777114067e+09 Pr: 1900(2.30809e+07) 229s
23368 -1.5647453176e+09 Pr: 1867(8.2494e+07); Du: 0(2.13932e-08) 235s
25893 -1.5499435701e+09 Pr: 1790(1.33966e+07) 240s
28123 -1.4933861118e+09 Pr: 1601(5.46795e+06); Du: 0(4.15042e-09) 246s
29835 -1.4659928811e+09 Pr: 1221(3.05762e+06); Du: 0(7.24469e-09) 252s
31567 -1.4461292456e+09 Pr: 506(1.81901e+06); Du: 0(1.28772e-08) 259s
32297 -1.4441396268e+09 Pr: 174(36813.7); Du: 0(8.41078e-08) 264s
32478 -1.4440246751e+09 Pr: 0(0); Du: 0(5.81036e-07) 265s
WARNING: Using concurrency of 1 for parallel strategy rather than minimum number (2) specified in options
Using EKK primal simplex solver
Iteration Objective Infeasibilities num(sum)
32478 -1.4440293920e+09 Pr: 0(0); Du: 3663(0.00175359) 265s
32507 -1.4440246751e+09 Pr: 0(0); Du: 0(8.1066e-06) 266s
Solving the original LP from the solution after postsolve
Model status : Optimal
Simplex iterations: 32507
Objective value : -1.4440246751e+09
P-D objective error : 1.6510699791e-15
HiGHS run time : 266.48
[11]:
if problem.status() != ws3.opt.STATUS_OPTIMAL:
print('Model not optimal.')
df = None
else:
sch = fm.compile_schedule(problem)
fm.apply_schedule(sch,
force_integral_area=False,
override_operability=False,
fuzzy_age=False,
recourse_enabled=False,
verbose=False,
compile_c_ycomps=True
)
df = compile_scenario(fm)
print(df)

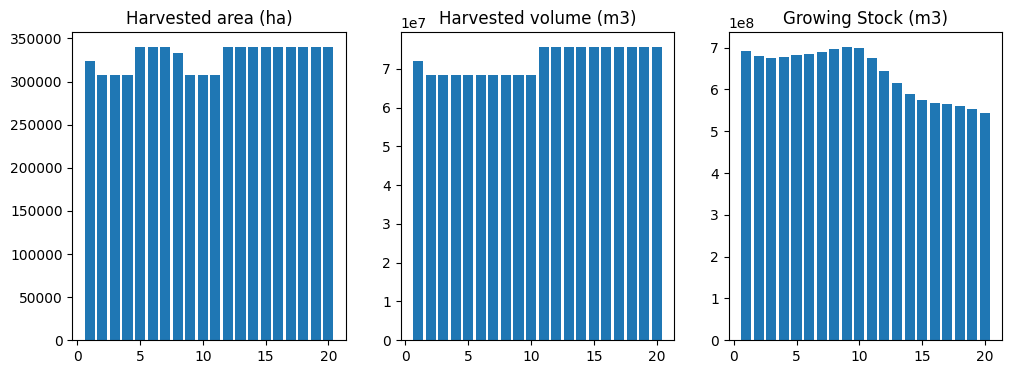

fig, ax = plot_scenario(df)
period oha ohv ogs
0 1 323917.431871 7.202118e+07 6.927929e+08
1 2 307721.560278 6.842012e+07 6.798218e+08
2 3 307721.560278 6.842012e+07 6.760743e+08
3 4 307721.560278 6.842012e+07 6.789138e+08
4 5 340113.303465 6.842012e+07 6.827610e+08
5 6 340113.303465 6.842012e+07 6.854458e+08
6 7 340113.303465 6.842012e+07 6.901670e+08
7 8 333083.385036 6.842012e+07 6.975081e+08
8 9 307721.560278 6.842012e+07 7.018079e+08
9 10 307721.560278 6.842012e+07 6.997713e+08
10 11 307721.560278 7.562224e+07 6.761588e+08
11 12 340113.303465 7.562224e+07 6.450464e+08
12 13 340113.303465 7.562224e+07 6.144736e+08
13 14 340113.303465 7.562224e+07 5.893272e+08
14 15 340113.303465 7.562224e+07 5.739232e+08
15 16 340113.303465 7.562224e+07 5.680156e+08
16 17 340113.303465 7.562224e+07 5.648146e+08
17 18 340113.303465 7.562224e+07 5.603040e+08
18 19 340113.303465 7.562224e+07 5.530622e+08
19 20 340113.303465 7.562224e+07 5.426653e+08
Rebuild and solve the same problem, but with 2 cores.
[12]:
workers = 2
[13]:
t0 = time.perf_counter()
problem = fm.add_problem(
name="test",
coeff_funcs=coeff_funcs,
cflw_e=cflw_e,
cgen_data=cgen_data,
acodes=acodes,
sense=ws3.opt.SENSE_MAXIMIZE,
mask=None,
workers=workers,
verbose=True
)
t1 = time.perf_counter()
print(f"Build time: {t1 - t0:.2f}s")
add_problem: build problem
generate trees using 2 workers
process trees
_bld_p_m1: build problem
_bld_p_m1: done building problem
add_problem: compile flow constraints
_cmp_cflw_m1: phase 1
_cmp_cflw_m1: phase 2
_cmp_cflw_m1: phase 3
add_problem: compile general constraints
Build time: 224.74s
[14]:
problem.solve(verbose=True, threads=workers)
Running HiGHS 1.11.0 (git hash: 364c83a): Copyright (c) 2025 HiGHS under MIT licence terms
WARNING: LP matrix packed vector contains 3 |values| in [1.45519e-11, 1.45519e-11] less than or equal to 1e-09: ignored
WARNING: LP matrix packed vector contains 1 |values| in [1.45519e-11, 1.45519e-11] less than or equal to 1e-09: ignored
WARNING: LP matrix packed vector contains 2 |values| in [4.54747e-13, 4.54747e-13] less than or equal to 1e-09: ignored
WARNING: LP matrix packed vector contains 1 |values| in [7.27596e-12, 7.27596e-12] less than or equal to 1e-09: ignored
WARNING: LP matrix packed vector contains 2 |values| in [4.54747e-13, 1.45519e-11] less than or equal to 1e-09: ignored
LP has 7778 rows; 461956 cols; 10014103 nonzeros
Coefficient ranges:
Matrix [1e-03, 1e+07]
Cost [3e+00, 2e+07]
Bound [1e+00, 1e+00]
RHS [1e+00, 1e+09]
Presolving model
4476 rows, 458658 cols, 9697481 nonzeros 3s
Dependent equations search running on 4398 equations with time limit of 1000.00s
Dependent equations search removed 0 rows and 0 nonzeros in 0.02s (limit = 1000.00s)
4475 rows, 458658 cols, 9413474 nonzeros 5s
Presolve : Reductions: rows 4475(-3303); columns 458658(-3298); elements 9413474(-600629)
Solving the presolved LP
WARNING: Number of threads available = 2 < 8 = Simplex concurrency to be used: Parallel performance may be less than anticipated
Using EKK parallel dual simplex solver - SIP with concurrency of 8
Iteration Objective Infeasibilities num(sum)
0 0.0000000000e+00 Ph1: 0(0) 7s
62 -9.3778657921e+09 Pr: 4412(6.28471e+08) 146s
127 -8.1932871410e+09 Pr: 4203(4.61045e+08); Du: 0(9.41877e-08) 158s
489 -7.4080343917e+09 Pr: 4081(7.61578e+07); Du: 0(2.55574e-09) 164s
1788 -5.9517248380e+09 Pr: 3633(8.25822e+07); Du: 0(2.98644e-08) 169s
2754 -5.1174280373e+09 Pr: 3403(9.00023e+07); Du: 0(3.30517e-08) 175s
3935 -4.0599762397e+09 Pr: 3524(9.52876e+07) 181s
6048 -3.1846461666e+09 Pr: 3531(1.18075e+08) 186s
8802 -2.2111406738e+09 Pr: 2864(3.54672e+07) 191s
11645 -1.8548556807e+09 Pr: 2452(6.9844e+07) 196s
14859 -1.6961273901e+09 Pr: 2289(2.0375e+07) 202s
17684 -1.6239667123e+09 Pr: 2082(1.86446e+07) 207s
20715 -1.5689207037e+09 Pr: 1775(1.85489e+07); Du: 0(8.79974e-09) 212s
24110 -1.5624119647e+09 Pr: 1935(3.77035e+07) 218s
27254 -1.4958470606e+09 Pr: 1742(7.29301e+06); Du: 0(3.48364e-08) 224s
29916 -1.4647766851e+09 Pr: 1188(5.49377e+06); Du: 0(3.24601e-08) 229s
31827 -1.4461284711e+09 Pr: 510(337654); Du: 0(6.59284e-08) 236s
32675 -1.4440246751e+09 Pr: 0(0); Du: 0(4.25428e-09) 240s
Solving the original LP from the solution after postsolve
Model status : Optimal
Simplex iterations: 32675
Objective value : -1.4440246751e+09
P-D objective error : 2.0638374739e-15
HiGHS run time : 240.43
Rebuild and solve the same problem, but with 4 cores.
[15]:
workers = 4
[16]:
t0 = time.perf_counter()
problem = fm.add_problem(
name="test",
coeff_funcs=coeff_funcs,
cflw_e=cflw_e,
cgen_data=cgen_data,
acodes=acodes,
sense=ws3.opt.SENSE_MAXIMIZE,
mask=None,
workers=workers,
verbose=True
)
t1 = time.perf_counter()
print(f"Build time: {t1 - t0:.2f}s")
add_problem: build problem
generate trees using 4 workers
process trees
_bld_p_m1: build problem
_bld_p_m1: done building problem
add_problem: compile flow constraints
_cmp_cflw_m1: phase 1
_cmp_cflw_m1: phase 2
_cmp_cflw_m1: phase 3
add_problem: compile general constraints
Build time: 180.17s
[17]:
problem.solve(verbose=True, threads=workers)
Running HiGHS 1.11.0 (git hash: 364c83a): Copyright (c) 2025 HiGHS under MIT licence terms
WARNING: LP matrix packed vector contains 1 |values| in [7.27596e-12, 7.27596e-12] less than or equal to 1e-09: ignored
WARNING: LP matrix packed vector contains 3 |values| in [1.45519e-11, 1.45519e-11] less than or equal to 1e-09: ignored
WARNING: LP matrix packed vector contains 1 |values| in [1.45519e-11, 1.45519e-11] less than or equal to 1e-09: ignored
WARNING: LP matrix packed vector contains 2 |values| in [4.54747e-13, 4.54747e-13] less than or equal to 1e-09: ignored
WARNING: LP matrix packed vector contains 2 |values| in [4.54747e-13, 1.45519e-11] less than or equal to 1e-09: ignored
LP has 7778 rows; 461956 cols; 10014103 nonzeros
Coefficient ranges:
Matrix [1e-03, 1e+07]
Cost [3e+00, 2e+07]
Bound [1e+00, 1e+00]
RHS [1e+00, 1e+09]
Presolving model
4476 rows, 458658 cols, 9697481 nonzeros 3s
Dependent equations search running on 4398 equations with time limit of 1000.00s
Dependent equations search removed 0 rows and 0 nonzeros in 0.02s (limit = 1000.00s)
4475 rows, 458658 cols, 9413474 nonzeros 5s
Presolve : Reductions: rows 4475(-3303); columns 458658(-3298); elements 9413474(-600629)
Solving the presolved LP
WARNING: Number of threads available = 4 < 8 = Simplex concurrency to be used: Parallel performance may be less than anticipated
Using EKK parallel dual simplex solver - SIP with concurrency of 8
Iteration Objective Infeasibilities num(sum)
0 0.0000000000e+00 Ph1: 0(0) 7s
76 -1.0090968799e+10 Pr: 4435(5.65204e+08) 132s
134 -8.3735976761e+09 Pr: 4198(2.35676e+08) 142s
551 -7.3666232510e+09 Pr: 4085(7.74913e+07) 148s
1881 -5.9582324420e+09 Pr: 3658(7.05966e+07) 153s
3044 -5.0283147476e+09 Pr: 3442(9.61591e+07) 159s
3997 -4.0718214698e+09 Pr: 3463(8.85617e+07) 164s
6680 -3.0293157251e+09 Pr: 3469(1.21311e+08) 169s
10081 -2.0157907527e+09 Pr: 2749(7.67172e+07) 175s
13365 -1.7283759175e+09 Pr: 2391(4.09505e+07) 180s
16623 -1.6795285974e+09 Pr: 2133(3.02162e+07) 185s
19761 -1.5877275648e+09 Pr: 2154(1.78827e+07) 191s
22848 -1.5680189680e+09 Pr: 1940(5.94837e+07); Du: 0(7.01371e-08) 196s
26728 -1.4953484146e+09 Pr: 1641(4.0448e+06); Du: 0(6.26156e-08) 202s
29335 -1.4647734459e+09 Pr: 1212(2.73558e+06); Du: 0(2.48074e-07) 207s
31201 -1.4461285715e+09 Pr: 528(675780) 213s
32064 -1.4440246751e+09 Pr: 0(0); Du: 0(3.44383e-09) 216s
Solving the original LP from the solution after postsolve
Model status : Optimal
Simplex iterations: 32064
Objective value : -1.4440246751e+09
P-D objective error : 3.7974609520e-15
HiGHS run time : 217.26
Rebuild and solve the same problem, but with 8 cores.
[18]:
workers = 8
[19]:
t0 = time.perf_counter()
problem = fm.add_problem(
name="test",
coeff_funcs=coeff_funcs,
cflw_e=cflw_e,
cgen_data=cgen_data,
acodes=acodes,
sense=ws3.opt.SENSE_MAXIMIZE,
mask=None,
workers=workers,
verbose=True
)
t1 = time.perf_counter()
print(f"Build time: {t1 - t0:.2f}s")
add_problem: build problem
generate trees using 8 workers
process trees
_bld_p_m1: build problem
_bld_p_m1: done building problem
add_problem: compile flow constraints
_cmp_cflw_m1: phase 1
_cmp_cflw_m1: phase 2
_cmp_cflw_m1: phase 3
add_problem: compile general constraints
Build time: 199.71s
[20]:
problem.solve(verbose=True, threads=workers)
Running HiGHS 1.11.0 (git hash: 364c83a): Copyright (c) 2025 HiGHS under MIT licence terms
WARNING: LP matrix packed vector contains 1 |values| in [7.27596e-12, 7.27596e-12] less than or equal to 1e-09: ignored
WARNING: LP matrix packed vector contains 3 |values| in [1.45519e-11, 1.45519e-11] less than or equal to 1e-09: ignored
WARNING: LP matrix packed vector contains 1 |values| in [1.45519e-11, 1.45519e-11] less than or equal to 1e-09: ignored
WARNING: LP matrix packed vector contains 2 |values| in [4.54747e-13, 4.54747e-13] less than or equal to 1e-09: ignored
WARNING: LP matrix packed vector contains 2 |values| in [4.54747e-13, 1.45519e-11] less than or equal to 1e-09: ignored
LP has 7778 rows; 461956 cols; 10014103 nonzeros
Coefficient ranges:
Matrix [1e-03, 1e+07]
Cost [3e+00, 2e+07]
Bound [1e+00, 1e+00]
RHS [1e+00, 1e+09]
Presolving model
4476 rows, 458658 cols, 9697481 nonzeros 4s
Dependent equations search running on 4398 equations with time limit of 1000.00s
Dependent equations search removed 0 rows and 0 nonzeros in 0.02s (limit = 1000.00s)
4475 rows, 458658 cols, 9413474 nonzeros 5s
Presolve : Reductions: rows 4475(-3303); columns 458658(-3298); elements 9413474(-600629)
Solving the presolved LP
Using EKK parallel dual simplex solver - SIP with concurrency of 8
Iteration Objective Infeasibilities num(sum)
0 0.0000000000e+00 Ph1: 0(0) 7s
71 -9.1403711680e+09 Pr: 4398(7.6073e+08) 147s
129 -8.1701817935e+09 Pr: 4203(2.90735e+08) 155s
1144 -6.5908877337e+09 Pr: 3836(1.60856e+08) 161s
2370 -5.3544632983e+09 Pr: 3576(6.67971e+07) 166s
3529 -4.3716887834e+09 Pr: 3356(1.09251e+08) 173s
5293 -3.3461327758e+09 Pr: 3669(1.11313e+08) 178s
8607 -2.1856485784e+09 Pr: 2881(4.00959e+07); Du: 0(9.98316e-08) 183s
11756 -1.7688183088e+09 Pr: 2475(7.34996e+07) 188s
15545 -1.6829120005e+09 Pr: 2175(5.19987e+07); Du: 0(3.77496e-08) 194s
19078 -1.5857819348e+09 Pr: 2031(2.38788e+07) 199s
22510 -1.5685961999e+09 Pr: 1697(1.11435e+07) 204s
26509 -1.5164456066e+09 Pr: 1814(9.75099e+06); Du: 0(3.98685e-08) 209s
29621 -1.4613754431e+09 Pr: 930(1.98947e+06); Du: 0(1.65603e-09) 215s
31540 -1.4441720306e+09 Pr: 205(119988); Du: 0(1.24444e-07) 220s
31783 -1.4440246751e+09 Pr: 0(0); Du: 0(1.28472e-07) 221s
WARNING: Using concurrency of 1 for parallel strategy rather than minimum number (2) specified in options
Using EKK primal simplex solver
Iteration Objective Infeasibilities num(sum)
31783 -1.4440246751e+09 Pr: 0(0); Du: 715(0.000372316) 221s
31797 -1.4440246751e+09 Pr: 0(0); Du: 0(1.04817e-05) 222s
Solving the original LP from the solution after postsolve
Model status : Optimal
Simplex iterations: 31797
Objective value : -1.4440246751e+09
P-D objective error : 7.4298149061e-16
HiGHS run time : 222.54
Rebuild and solve the same problem, but with 16 cores.
[21]:
workers = 16
[22]:
t0 = time.perf_counter()
problem = fm.add_problem(
name="test",
coeff_funcs=coeff_funcs,
cflw_e=cflw_e,
cgen_data=cgen_data,
acodes=acodes,
sense=ws3.opt.SENSE_MAXIMIZE,
mask=None,
workers=workers,
verbose=True
)
t1 = time.perf_counter()
print(f"Build time: {t1 - t0:.2f}s")
add_problem: build problem
generate trees using 16 workers
process trees
_bld_p_m1: build problem
_bld_p_m1: done building problem
add_problem: compile flow constraints
_cmp_cflw_m1: phase 1
_cmp_cflw_m1: phase 2
_cmp_cflw_m1: phase 3
add_problem: compile general constraints
Build time: 227.73s
[23]:
problem.solve(verbose=True, threads=workers)
Running HiGHS 1.11.0 (git hash: 364c83a): Copyright (c) 2025 HiGHS under MIT licence terms
WARNING: LP matrix packed vector contains 1 |values| in [7.27596e-12, 7.27596e-12] less than or equal to 1e-09: ignored
WARNING: LP matrix packed vector contains 1 |values| in [1.45519e-11, 1.45519e-11] less than or equal to 1e-09: ignored
WARNING: LP matrix packed vector contains 2 |values| in [4.54747e-13, 1.45519e-11] less than or equal to 1e-09: ignored
WARNING: LP matrix packed vector contains 3 |values| in [1.45519e-11, 1.45519e-11] less than or equal to 1e-09: ignored
WARNING: LP matrix packed vector contains 2 |values| in [4.54747e-13, 4.54747e-13] less than or equal to 1e-09: ignored
LP has 7778 rows; 461956 cols; 10014103 nonzeros
Coefficient ranges:
Matrix [1e-03, 1e+07]
Cost [3e+00, 2e+07]
Bound [1e+00, 1e+00]
RHS [1e+00, 1e+09]
Presolving model
4476 rows, 458658 cols, 9697481 nonzeros 3s
Dependent equations search running on 4398 equations with time limit of 1000.00s
Dependent equations search removed 0 rows and 0 nonzeros in 0.02s (limit = 1000.00s)
4475 rows, 458658 cols, 9413474 nonzeros 5s
Presolve : Reductions: rows 4475(-3303); columns 458658(-3298); elements 9413474(-600629)
Solving the presolved LP
Using EKK parallel dual simplex solver - SIP with concurrency of 8
Iteration Objective Infeasibilities num(sum)
0 0.0000000000e+00 Ph1: 0(0) 7s
66 -1.1251912865e+10 Pr: 4375(1.73568e+09) 151s
121 -8.4309021230e+09 Pr: 4410(3.91691e+08) 179s
448 -7.5477651357e+09 Pr: 4106(1.65751e+08) 185s
1667 -6.0596936456e+09 Pr: 3561(9.06301e+07) 191s
2653 -5.1788871593e+09 Pr: 3488(1.07611e+08) 196s
3810 -4.3729156030e+09 Pr: 3536(7.98353e+07) 202s
5526 -3.5430741540e+09 Pr: 3520(6.83297e+07) 207s
8576 -2.2154244405e+09 Pr: 2872(5.07237e+07) 213s
11998 -1.7614115077e+09 Pr: 2395(4.49786e+07) 218s
15479 -1.6936998494e+09 Pr: 2020(1.84433e+07) 224s
19102 -1.6008342410e+09 Pr: 2075(2.84657e+07) 229s
22465 -1.5684003360e+09 Pr: 1740(1.46312e+07) 234s
26609 -1.5087149887e+09 Pr: 1828(5.55282e+06) 240s
29126 -1.4634396103e+09 Pr: 1130(1.56525e+06); Du: 0(5.75094e-08) 245s
30982 -1.4444263286e+09 Pr: 332(943478); Du: 0(2.00021e-08) 250s
31453 -1.4440246751e+09 Pr: 0(0); Du: 0(3.40625e-08) 252s
WARNING: Using concurrency of 1 for parallel strategy rather than minimum number (2) specified in options
Using EKK primal simplex solver
Iteration Objective Infeasibilities num(sum)
31453 -1.4440246751e+09 Pr: 0(0); Du: 132(0.000116388) 252s
31454 -1.4440246751e+09 Pr: 0(0); Du: 0(7.28502e-06) 252s
Solving the original LP from the solution after postsolve
Model status : Optimal
Simplex iterations: 31454
Objective value : -1.4440246751e+09
P-D objective error : 2.2289444718e-15
HiGHS run time : 253.24
Rebuild and solve the same problem, but with 32 cores.
[24]:
workers = 32
[25]:
t0 = time.perf_counter()
problem = fm.add_problem(
name="test",
coeff_funcs=coeff_funcs,
cflw_e=cflw_e,
cgen_data=cgen_data,
acodes=acodes,
sense=ws3.opt.SENSE_MAXIMIZE,
mask=None,
workers=workers,
verbose=True
)
t1 = time.perf_counter()
print(f"Build time: {t1 - t0:.2f}s")
add_problem: build problem
generate trees using 32 workers
process trees
_bld_p_m1: build problem
_bld_p_m1: done building problem
add_problem: compile flow constraints
_cmp_cflw_m1: phase 1
_cmp_cflw_m1: phase 2
_cmp_cflw_m1: phase 3
add_problem: compile general constraints
Build time: 254.56s
[26]:
problem.solve(verbose=True, threads=workers)
Running HiGHS 1.11.0 (git hash: 364c83a): Copyright (c) 2025 HiGHS under MIT licence terms
WARNING: LP matrix packed vector contains 3 |values| in [1.45519e-11, 1.45519e-11] less than or equal to 1e-09: ignored
WARNING: LP matrix packed vector contains 2 |values| in [4.54747e-13, 4.54747e-13] less than or equal to 1e-09: ignored
WARNING: LP matrix packed vector contains 1 |values| in [7.27596e-12, 7.27596e-12] less than or equal to 1e-09: ignored
WARNING: LP matrix packed vector contains 1 |values| in [1.45519e-11, 1.45519e-11] less than or equal to 1e-09: ignored
WARNING: LP matrix packed vector contains 2 |values| in [4.54747e-13, 1.45519e-11] less than or equal to 1e-09: ignored
LP has 7778 rows; 461956 cols; 10014103 nonzeros
Coefficient ranges:
Matrix [1e-03, 1e+07]
Cost [3e+00, 2e+07]
Bound [1e+00, 1e+00]
RHS [1e+00, 1e+09]
Presolving model
4476 rows, 458658 cols, 9697481 nonzeros 3s
Dependent equations search running on 4398 equations with time limit of 1000.00s
Dependent equations search removed 0 rows and 0 nonzeros in 0.02s (limit = 1000.00s)
4475 rows, 458658 cols, 9413474 nonzeros 5s
Presolve : Reductions: rows 4475(-3303); columns 458658(-3298); elements 9413474(-600629)
Solving the presolved LP
Using EKK parallel dual simplex solver - SIP with concurrency of 8
Iteration Objective Infeasibilities num(sum)
0 0.0000000000e+00 Ph1: 0(0) 7s
68 -9.8287125279e+09 Pr: 4436(4.32668e+08) 154s
128 -8.2487637044e+09 Pr: 4122(2.29633e+08) 173s
574 -7.2733102617e+09 Pr: 4108(8.02629e+07) 178s
1944 -5.8241401830e+09 Pr: 3519(7.09098e+07) 184s
3189 -4.8691855008e+09 Pr: 3283(8.24689e+07) 189s
4115 -4.0208477673e+09 Pr: 3543(1.4801e+08) 195s
6467 -3.0020163843e+09 Pr: 3480(1.08353e+08) 200s
9930 -1.9947083169e+09 Pr: 2704(2.31275e+08) 206s
13367 -1.7211583486e+09 Pr: 2322(4.99249e+07) 211s
16730 -1.6626995865e+09 Pr: 2198(2.38206e+07) 216s
20489 -1.5753482098e+09 Pr: 1964(6.11287e+07) 221s
24818 -1.5617086064e+09 Pr: 1933(1.5556e+07) 227s
29155 -1.4822839970e+09 Pr: 1387(4.64393e+06); Du: 0(4.05335e-08) 232s
31526 -1.4509350067e+09 Pr: 763(2.60451e+06); Du: 0(5.62414e-08) 238s
32923 -1.4440246751e+09 Pr: 0(0); Du: 0(3.45811e-08) 242s
WARNING: Using concurrency of 1 for parallel strategy rather than minimum number (2) specified in options
Using EKK primal simplex solver
Iteration Objective Infeasibilities num(sum)
32923 -1.4440246751e+09 Pr: 0(0); Du: 83(8.98855e-05) 242s
32929 -1.4440246751e+09 Pr: 0(0); Du: 0(5.31874e-06) 242s
Solving the original LP from the solution after postsolve
Model status : Optimal
Simplex iterations: 32929
Objective value : -1.4440246751e+09
P-D objective error : 1.3208559833e-15
HiGHS run time : 243.22
Rebuild and solve the same problem, but with 64 cores.
[27]:
workers = 64
[28]:
t0 = time.perf_counter()
problem = fm.add_problem(
name="test",
coeff_funcs=coeff_funcs,
cflw_e=cflw_e,
cgen_data=cgen_data,
acodes=acodes,
sense=ws3.opt.SENSE_MAXIMIZE,
mask=None,
workers=workers,
verbose=True
)
t1 = time.perf_counter()
print(f"Build time: {t1 - t0:.2f}s")
add_problem: build problem
generate trees using 64 workers
process trees
_bld_p_m1: build problem
_bld_p_m1: done building problem
add_problem: compile flow constraints
_cmp_cflw_m1: phase 1
_cmp_cflw_m1: phase 2
_cmp_cflw_m1: phase 3
add_problem: compile general constraints
Build time: 284.35s
[29]:
problem.solve(verbose=True, threads=workers)
Running HiGHS 1.11.0 (git hash: 364c83a): Copyright (c) 2025 HiGHS under MIT licence terms
WARNING: LP matrix packed vector contains 3 |values| in [1.45519e-11, 1.45519e-11] less than or equal to 1e-09: ignored
WARNING: LP matrix packed vector contains 2 |values| in [4.54747e-13, 4.54747e-13] less than or equal to 1e-09: ignored
WARNING: LP matrix packed vector contains 1 |values| in [7.27596e-12, 7.27596e-12] less than or equal to 1e-09: ignored
WARNING: LP matrix packed vector contains 1 |values| in [1.45519e-11, 1.45519e-11] less than or equal to 1e-09: ignored
WARNING: LP matrix packed vector contains 2 |values| in [4.54747e-13, 1.45519e-11] less than or equal to 1e-09: ignored
LP has 7778 rows; 461956 cols; 10014103 nonzeros
Coefficient ranges:
Matrix [1e-03, 1e+07]
Cost [3e+00, 2e+07]
Bound [1e+00, 1e+00]
RHS [1e+00, 1e+09]
Presolving model
4476 rows, 458658 cols, 9697481 nonzeros 4s
Dependent equations search running on 4398 equations with time limit of 1000.00s
Dependent equations search removed 0 rows and 0 nonzeros in 0.02s (limit = 1000.00s)
4475 rows, 458658 cols, 9413474 nonzeros 5s
Presolve : Reductions: rows 4475(-3303); columns 458658(-3298); elements 9413474(-600629)
Solving the presolved LP
Using EKK parallel dual simplex solver - SIP with concurrency of 8
Iteration Objective Infeasibilities num(sum)
0 0.0000000000e+00 Ph1: 0(0) 7s
67 -9.4437714651e+09 Pr: 4442(2.68216e+09) 173s
125 -8.2555413978e+09 Pr: 4145(2.33438e+08) 186s
545 -7.3750742902e+09 Pr: 4206(7.90811e+07) 192s
1851 -5.9849268130e+09 Pr: 3481(1.21812e+08); Du: 0(6.81872e-08) 197s
3023 -5.0439835211e+09 Pr: 3465(1.49353e+08) 202s
4045 -4.2461134672e+09 Pr: 3484(8.90032e+07) 207s
6646 -3.0152325529e+09 Pr: 3535(9.47888e+07) 212s
10192 -1.9960665728e+09 Pr: 2720(4.36531e+07) 218s
13704 -1.7268481182e+09 Pr: 2362(2.45244e+07) 223s
17530 -1.6369445728e+09 Pr: 2097(6.80344e+07) 228s
20812 -1.5764268782e+09 Pr: 1864(1.90361e+07) 233s
25475 -1.5336011536e+09 Pr: 1873(2.71848e+07); Du: 0(2.59463e-08) 239s
28624 -1.4757911322e+09 Pr: 1288(4.43103e+06) 244s
30905 -1.4506586473e+09 Pr: 719(788199); Du: 0(1.41957e-07) 250s
32465 -1.4440342403e+09 Pr: 0(0); Du: 0(4.43213e-07) 255s
32465 -1.4440246751e+09 Pr: 0(0); Du: 0(4.51458e-08) 255s
WARNING: Using concurrency of 1 for parallel strategy rather than minimum number (2) specified in options
Using EKK primal simplex solver
Iteration Objective Infeasibilities num(sum)
32465 -1.4440246751e+09 Pr: 0(0); Du: 191(0.000131132) 256s
32499 -1.4440246751e+09 Pr: 0(0); Du: 0(5.60054e-06) 256s
Solving the original LP from the solution after postsolve
Model status : Optimal
Simplex iterations: 32499
Objective value : -1.4440246751e+09
P-D objective error : 6.6042799166e-16
HiGHS run time : 256.79
So we can see from these results that throwing more cores at this problem improves performance, we do not get a benefit past 8 cores. As with many parallel processing problems, performance benefits of adding more parallel cores eventually gets overpowered by the fixed cost of worker process initialization (i.e., IPC cost from serialization of data that needs to be sent to and from worker threads at the start and end of work batches). The current parallel implementation in ws3 requires a
substantial amount of data to be sent back and forth, so this equilibrium maxes out relatively quickly. Hopefully in a future release we can find a way to reduce IPC cost, and maybe squeeze benefits from adding more cores if they are available.
Next, we run profiling on 4, 8, and 16 core model building runs to get some more insight into what exactly is dominating runtime for these three cases.
[30]:
for workers in [1, 2, 4, 8, 16, 32, 64]:
print("Building problem with", workers, "workers")
pr = cProfile.Profile()
pr.enable()
problem = fm.add_problem(
name="test",
coeff_funcs=coeff_funcs,
cflw_e=cflw_e,
cgen_data=cgen_data,
acodes=acodes,
sense=ws3.opt.SENSE_MAXIMIZE,
mask=None,
workers=workers,
verbose=False
)
pr.disable()
s = io.StringIO()
pstats.Stats(pr, stream=s).sort_stats("cumtime").print_stats(30)
print(s.getvalue())
Building problem with 1 workers
687767462 function calls (685741537 primitive calls) in 407.821 seconds
Ordered by: cumulative time
List reduced from 277 to 30 due to restriction <30>
ncalls tottime percall cumtime percall filename:lineno(function)
81 5.150 0.064 1050.072 12.964 /usr/lib/python3.12/asyncio/base_events.py:1910(_run_once)
1 0.016 0.016 268.823 268.823 /home/gep/projects/ws3/ws3/forest.py:968(_bld_p_m1)
2033458/7696 18.879 0.000 236.965 0.031 /home/gep/projects/ws3/ws3/forest.py:1103(_bld_tree_m1)
80 31.158 0.389 104.831 1.310 /usr/lib/python3.12/selectors.py:451(select)
2682351 11.983 0.000 74.048 0.000 /home/gep/projects/ws3/ws3/forest.py:1495(compile_product)
375 34.520 0.092 72.136 0.192 {built-in method time.sleep}
2/1 4.492 2.246 65.126 65.126 /home/gep/projects/ws3/ws3/forest.py:872(add_problem)
2487718 28.985 0.000 53.620 0.000 /home/gep/projects/ws3/ws3/forest.py:1664(apply_action)
923912 6.263 0.000 51.945 0.000 /home/gep/projects/ws3/examples/util.py:128(cmp_c_caa)
30784 0.461 0.000 39.164 0.001 /home/gep/projects/ws3/ws3/common.py:1109(paths)
461956 5.348 0.000 37.198 0.000 /home/gep/projects/ws3/examples/util.py:83(cmp_c_z)
2309780 23.139 0.000 35.454 0.000 /home/gep/projects/ws3/ws3/common.py:1093(path)
461956 6.659 0.000 31.380 0.000 /home/gep/projects/ws3/examples/util.py:152(cmp_c_ci)
2682351 27.895 0.000 29.770 0.000 {built-in method builtins.eval}
9239120 10.397 0.000 23.955 0.000 /home/gep/projects/ws3/ws3/forest.py:1420(inventory)
20 5.205 0.260 23.415 1.171 /home/gep/projects/ws3/ws3/forest_helper.py:285(worker_cmp_cgen_phase3)
9708772 5.224 0.000 23.274 0.000 /home/gep/projects/ws3/ws3/common.py:82(hex_id)
40 20.450 0.511 20.450 0.511 /home/gep/projects/ws3/ws3/forest_helper.py:220(worker_cmp_cflw_phase3)
19189992 7.743 0.000 20.175 0.000 /home/gep/projects/ws3/ws3/core.py:324(__getitem__)
4502450 16.137 0.000 20.152 0.000 /home/gep/projects/ws3/ws3/forest.py:503(grow)
4 1.201 0.300 13.670 3.417 /home/gep/projects/ws3/ws3/forest_helper.py:105(worker_summarize_tree_batch)
7778 0.006 0.000 12.702 0.002 /home/gep/projects/ws3/ws3/opt.py:176(add_constraint)
1 0.027 0.027 12.623 12.623 /home/gep/projects/ws3/ws3/forest.py:1173(_cmp_cflw_m1)
7778 0.009 0.000 12.589 0.002 /home/gep/projects/ws3/ws3/opt.py:69(__init__)
7778 2.695 0.000 12.577 0.002 {built-in method builtins.all}
19189992 7.848 0.000 12.432 0.000 /home/gep/projects/ws3/ws3/core.py:45(__call__)
9708772 10.735 0.000 10.735 0.000 {built-in method _pickle.dumps}
38350126 6.527 0.000 9.963 0.000 /home/gep/projects/ws3/ws3/opt.py:72(<genexpr>)
71675351 9.344 0.000 9.344 0.000 {method 'append' of 'list' objects}
86847728 9.214 0.000 9.214 0.000 /home/gep/projects/ws3/ws3/common.py:996(data)
Building problem with 2 workers
199808762 function calls (199680982 primitive calls) in 390.364 seconds
Ordered by: cumulative time
List reduced from 545 to 30 due to restriction <30>
ncalls tottime percall cumtime percall filename:lineno(function)
83 1.429 0.017 1217.433 14.668 /usr/lib/python3.12/asyncio/base_events.py:1910(_run_once)
83 47.774 0.576 938.323 11.305 /usr/lib/python3.12/selectors.py:451(select)
83 11.567 0.139 414.717 4.997 {method 'poll' of 'select.epoll' objects}
2/1 0.000 0.000 390.363 390.363 /home/gep/projects/ws3/ws3/forest.py:872(add_problem)
1 0.000 0.000 390.042 390.042 /home/gep/projects/ws3/ws3/forest_helper.py:347(__exit__)
1 0.003 0.003 390.042 390.042 /usr/lib/python3.12/concurrent/futures/process.py:864(shutdown)
159/158 0.001 0.000 390.027 2.469 /usr/lib/python3.12/threading.py:1153(_wait_for_tstate_lock)
2/1 1.311 0.656 390.027 390.027 /usr/lib/python3.12/threading.py:1115(join)
474/73 0.002 0.000 388.935 5.328 {method 'acquire' of '_thread.lock' objects}
2/1 0.000 0.000 388.934 388.934 /usr/lib/python3.12/threading.py:1016(_bootstrap)
2/1 0.000 0.000 388.934 388.934 /usr/lib/python3.12/threading.py:1056(_bootstrap_inner)
1 0.004 0.004 388.934 388.934 /usr/lib/python3.12/concurrent/futures/process.py:340(run)
1 0.000 0.000 388.929 388.929 /usr/lib/python3.12/concurrent/futures/process.py:574(join_executor_internals)
1 0.000 0.000 388.929 388.929 /usr/lib/python3.12/concurrent/futures/process.py:578(_join_executor_internals)
4 0.000 0.000 387.904 96.976 /usr/lib/python3.12/multiprocessing/util.py:208(__call__)
1 0.000 0.000 387.904 387.904 /usr/lib/python3.12/multiprocessing/queues.py:147(join_thread)
298 194.424 0.652 301.104 1.010 {built-in method time.sleep}
1 0.015 0.015 185.773 185.773 /home/gep/projects/ws3/ws3/forest.py:968(_bld_p_m1)
32 0.029 0.001 117.171 3.662 /usr/lib/python3.12/concurrent/futures/process.py:415(wait_result_broken_or_wakeup)
91 0.002 0.000 98.245 1.080 /usr/lib/python3.12/multiprocessing/connection.py:1122(wait)
91 0.036 0.000 97.502 1.071 /usr/lib/python3.12/selectors.py:402(select)
1 0.000 0.000 55.185 55.185 /usr/lib/python3.12/multiprocessing/queues.py:214(_finalize_join)
28 43.702 1.561 43.702 1.561 {method 'dump' of '_pickle.Pickler' objects}
55 0.001 0.000 26.860 0.488 /usr/lib/python3.12/multiprocessing/connection.py:182(send_bytes)
55 0.014 0.000 26.591 0.483 /usr/lib/python3.12/multiprocessing/connection.py:406(_send_bytes)
1 0.075 0.075 24.116 24.116 /home/gep/projects/ws3/ws3/forest.py:1279(_cmp_cgen_m1)
15392 0.260 0.000 23.805 0.002 /home/gep/projects/ws3/ws3/common.py:1109(paths)
73 0.001 0.000 21.663 0.297 /usr/lib/python3.12/multiprocessing/connection.py:381(_send)
923912 13.205 0.000 21.373 0.000 /home/gep/projects/ws3/ws3/common.py:1093(path)
26 18.830 0.724 18.830 0.724 {built-in method _pickle.loads}
Building problem with 4 workers
199820085 function calls (199692674 primitive calls) in 294.212 seconds
Ordered by: cumulative time
List reduced from 543 to 30 due to restriction <30>
ncalls tottime percall cumtime percall filename:lineno(function)
68 0.992 0.015 687.612 10.112 /usr/lib/python3.12/asyncio/base_events.py:1910(_run_once)
1 0.000 0.000 294.211 294.211 /home/gep/projects/ws3/ws3/forest.py:872(add_problem)
1 0.000 0.000 293.884 293.884 /home/gep/projects/ws3/ws3/forest_helper.py:347(__exit__)
1 0.004 0.004 293.884 293.884 /usr/lib/python3.12/concurrent/futures/process.py:864(shutdown)
127/122 0.000 0.000 293.865 2.409 /usr/lib/python3.12/threading.py:1153(_wait_for_tstate_lock)
2/1 0.000 0.000 293.865 293.865 /usr/lib/python3.12/threading.py:1115(join)
789/169 0.004 0.000 291.478 1.725 {method 'acquire' of '_thread.lock' objects}
2/1 0.000 0.000 291.474 291.474 /usr/lib/python3.12/threading.py:1016(_bootstrap)
2/1 0.000 0.000 291.474 291.474 /usr/lib/python3.12/threading.py:1056(_bootstrap_inner)
1 0.001 0.001 291.474 291.474 /usr/lib/python3.12/concurrent/futures/process.py:340(run)
1 0.000 0.000 291.474 291.474 /usr/lib/python3.12/concurrent/futures/process.py:574(join_executor_internals)
1 0.000 0.000 291.474 291.474 /usr/lib/python3.12/concurrent/futures/process.py:578(_join_executor_internals)
6 0.000 0.000 290.265 48.378 /usr/lib/python3.12/multiprocessing/util.py:208(__call__)
1 0.000 0.000 290.265 290.265 /usr/lib/python3.12/multiprocessing/queues.py:147(join_thread)
68 46.245 0.680 277.255 4.077 /usr/lib/python3.12/selectors.py:451(select)
66 0.695 0.011 152.453 2.310 /usr/lib/python3.12/concurrent/futures/process.py:415(wait_result_broken_or_wakeup)
214 99.358 0.464 142.185 0.664 {built-in method time.sleep}
1 0.019 0.019 112.891 112.891 /home/gep/projects/ws3/ws3/forest.py:968(_bld_p_m1)
193 0.003 0.000 58.819 0.305 /usr/lib/python3.12/multiprocessing/connection.py:1122(wait)
193 0.087 0.000 58.634 0.304 /usr/lib/python3.12/selectors.py:402(select)
64 50.125 0.783 50.125 0.783 {method 'dump' of '_pickle.Pickler' objects}
1 0.000 0.000 24.129 24.129 /home/gep/projects/ws3/ws3/forest.py:1173(_cmp_cflw_m1)
15392 0.254 0.000 23.324 0.002 /home/gep/projects/ws3/ws3/common.py:1109(paths)
60 8.006 0.133 22.857 0.381 /usr/lib/python3.12/multiprocessing/connection.py:246(recv)
923912 13.283 0.000 21.281 0.000 /home/gep/projects/ws3/ws3/common.py:1093(path)
60 17.061 0.284 17.061 0.284 {built-in method _pickle.loads}
68 6.393 0.094 16.267 0.239 {method 'poll' of 'select.epoll' objects}
125 0.001 0.000 14.102 0.113 /usr/lib/python3.12/multiprocessing/connection.py:182(send_bytes)
125 0.001 0.000 14.101 0.113 /usr/lib/python3.12/multiprocessing/connection.py:406(_send_bytes)
169 0.002 0.000 14.100 0.083 /usr/lib/python3.12/multiprocessing/connection.py:381(_send)
Building problem with 8 workers
199851201 function calls (199723359 primitive calls) in 301.239 seconds
Ordered by: cumulative time
List reduced from 545 to 30 due to restriction <30>
ncalls tottime percall cumtime percall filename:lineno(function)
86 7.032 0.082 681.010 7.919 /usr/lib/python3.12/asyncio/base_events.py:1910(_run_once)
1 0.000 0.000 301.236 301.236 /home/gep/projects/ws3/ws3/forest.py:872(add_problem)
1 0.000 0.000 300.902 300.902 /home/gep/projects/ws3/ws3/forest_helper.py:347(__exit__)
1 0.004 0.004 300.902 300.902 /usr/lib/python3.12/concurrent/futures/process.py:864(shutdown)
155/154 0.001 0.000 300.881 1.954 /usr/lib/python3.12/threading.py:1153(_wait_for_tstate_lock)
2/1 0.000 0.000 300.881 300.881 /usr/lib/python3.12/threading.py:1115(join)
1330/334 0.028 0.000 295.999 0.886 {method 'acquire' of '_thread.lock' objects}
2/1 0.000 0.000 295.447 295.447 /usr/lib/python3.12/threading.py:1016(_bootstrap)
2/1 0.000 0.000 295.447 295.447 /usr/lib/python3.12/threading.py:1056(_bootstrap_inner)
1 0.001 0.001 295.446 295.446 /usr/lib/python3.12/concurrent/futures/process.py:340(run)
1 0.000 0.000 295.446 295.446 /usr/lib/python3.12/concurrent/futures/process.py:574(join_executor_internals)
1 0.000 0.000 295.446 295.446 /usr/lib/python3.12/concurrent/futures/process.py:578(_join_executor_internals)
10 0.000 0.000 293.868 29.387 /usr/lib/python3.12/multiprocessing/util.py:208(__call__)
1 0.000 0.000 293.868 293.868 /usr/lib/python3.12/multiprocessing/queues.py:147(join_thread)
86 57.895 0.673 191.861 2.231 /usr/lib/python3.12/selectors.py:451(select)
193 65.939 0.342 144.224 0.747 {built-in method time.sleep}
115 1.552 0.013 140.632 1.223 /usr/lib/python3.12/concurrent/futures/process.py:415(wait_result_broken_or_wakeup)
339 0.010 0.000 87.351 0.258 /usr/lib/python3.12/multiprocessing/connection.py:1122(wait)
339 0.016 0.000 86.429 0.255 /usr/lib/python3.12/selectors.py:402(select)
116 64.641 0.557 64.641 0.557 {method 'dump' of '_pickle.Pickler' objects}
1 0.001 0.001 38.528 38.528 /home/gep/projects/ws3/ws3/forest.py:1173(_cmp_cflw_m1)
108 8.978 0.083 31.152 0.288 /usr/lib/python3.12/multiprocessing/connection.py:246(recv)
339 8.134 0.024 24.589 0.073 {method 'poll' of 'select.poll' objects}
15392 0.255 0.000 23.410 0.002 /home/gep/projects/ws3/ws3/common.py:1109(paths)
923912 12.962 0.000 20.943 0.000 /home/gep/projects/ws3/ws3/common.py:1093(path)
108 20.139 0.186 20.139 0.186 {built-in method _pickle.loads}
225 0.002 0.000 16.733 0.074 /usr/lib/python3.12/multiprocessing/connection.py:182(send_bytes)
1 0.000 0.000 16.463 16.463 /home/gep/projects/ws3/ws3/forest.py:1279(_cmp_cgen_m1)
225 0.002 0.000 16.425 0.073 /usr/lib/python3.12/multiprocessing/connection.py:406(_send_bytes)
301 0.003 0.000 16.418 0.055 /usr/lib/python3.12/multiprocessing/connection.py:381(_send)
Building problem with 16 workers
199920526 function calls (199791902 primitive calls) in 276.475 seconds
Ordered by: cumulative time
List reduced from 543 to 30 due to restriction <30>
ncalls tottime percall cumtime percall filename:lineno(function)
114 0.012 0.000 475.528 4.171 /usr/lib/python3.12/asyncio/base_events.py:1910(_run_once)
114 59.178 0.519 279.821 2.455 /usr/lib/python3.12/selectors.py:451(select)
1 0.000 0.000 276.474 276.474 /home/gep/projects/ws3/ws3/forest.py:872(add_problem)
1 0.000 0.000 276.143 276.143 /home/gep/projects/ws3/ws3/forest_helper.py:347(__exit__)
1 0.004 0.004 276.143 276.143 /usr/lib/python3.12/concurrent/futures/process.py:864(shutdown)
195/194 0.001 0.000 276.118 1.423 /usr/lib/python3.12/threading.py:1153(_wait_for_tstate_lock)
2/1 0.000 0.000 276.117 276.117 /usr/lib/python3.12/threading.py:1115(join)
2347/681 0.191 0.000 267.994 0.394 {method 'acquire' of '_thread.lock' objects}
2/1 0.000 0.000 265.797 265.797 /usr/lib/python3.12/threading.py:1016(_bootstrap)
2/1 0.000 0.000 265.797 265.797 /usr/lib/python3.12/threading.py:1056(_bootstrap_inner)
1 0.004 0.004 265.797 265.797 /usr/lib/python3.12/concurrent/futures/process.py:340(run)
1 0.000 0.000 265.793 265.793 /usr/lib/python3.12/concurrent/futures/process.py:574(join_executor_internals)
1 0.000 0.000 265.793 265.793 /usr/lib/python3.12/concurrent/futures/process.py:578(_join_executor_internals)
18 0.001 0.000 263.906 14.661 /usr/lib/python3.12/multiprocessing/util.py:208(__call__)
1 0.000 0.000 263.906 263.906 /usr/lib/python3.12/multiprocessing/queues.py:147(join_thread)
168 25.576 0.152 129.085 0.768 {built-in method time.sleep}
202 1.900 0.009 92.160 0.456 /usr/lib/python3.12/concurrent/futures/process.py:415(wait_result_broken_or_wakeup)
601 0.009 0.000 83.874 0.140 /usr/lib/python3.12/multiprocessing/connection.py:1122(wait)
212 80.261 0.379 80.261 0.379 {method 'dump' of '_pickle.Pickler' objects}
601 0.012 0.000 80.223 0.133 /usr/lib/python3.12/selectors.py:402(select)
1 0.001 0.001 27.911 27.911 /home/gep/projects/ws3/ws3/forest.py:1173(_cmp_cflw_m1)
196 9.684 0.049 26.920 0.137 /usr/lib/python3.12/multiprocessing/connection.py:246(recv)
601 6.826 0.011 24.492 0.041 {method 'poll' of 'select.poll' objects}
15392 0.263 0.000 23.368 0.002 /home/gep/projects/ws3/ws3/common.py:1109(paths)
409 0.003 0.000 23.187 0.057 /usr/lib/python3.12/multiprocessing/connection.py:182(send_bytes)
409 0.029 0.000 22.783 0.056 /usr/lib/python3.12/multiprocessing/connection.py:406(_send_bytes)
923912 12.893 0.000 20.852 0.000 /home/gep/projects/ws3/ws3/common.py:1093(path)
541 0.340 0.001 19.535 0.036 /usr/lib/python3.12/multiprocessing/connection.py:381(_send)
196 19.088 0.097 19.088 0.097 {built-in method _pickle.loads}
541 9.699 0.018 12.911 0.024 {built-in method posix.write}
Building problem with 32 workers
200065847 function calls (199936173 primitive calls) in 324.315 seconds
Ordered by: cumulative time
List reduced from 545 to 30 due to restriction <30>
ncalls tottime percall cumtime percall filename:lineno(function)
184 0.036 0.000 551.675 2.998 /usr/lib/python3.12/asyncio/base_events.py:1910(_run_once)
1 0.000 0.000 324.311 324.311 /home/gep/projects/ws3/ws3/forest.py:872(add_problem)
1 0.000 0.000 323.968 323.968 /home/gep/projects/ws3/ws3/forest_helper.py:347(__exit__)
1 0.004 0.004 323.968 323.968 /usr/lib/python3.12/concurrent/futures/process.py:864(shutdown)
303/302 0.001 0.000 323.933 1.073 /usr/lib/python3.12/threading.py:1153(_wait_for_tstate_lock)
2/1 1.824 0.912 323.932 323.932 /usr/lib/python3.12/threading.py:1115(join)
3966/1404 0.037 0.000 304.071 0.217 {method 'acquire' of '_thread.lock' objects}
2/1 0.000 0.000 303.528 303.528 /usr/lib/python3.12/threading.py:1016(_bootstrap)
2/1 0.000 0.000 303.528 303.528 /usr/lib/python3.12/threading.py:1056(_bootstrap_inner)
1 0.002 0.002 303.528 303.528 /usr/lib/python3.12/concurrent/futures/process.py:340(run)
1 0.000 0.000 303.526 303.526 /usr/lib/python3.12/concurrent/futures/process.py:574(join_executor_internals)
1 0.000 0.000 303.526 303.526 /usr/lib/python3.12/concurrent/futures/process.py:578(_join_executor_internals)
34 0.001 0.000 300.907 8.850 /usr/lib/python3.12/multiprocessing/util.py:208(__call__)
1 0.000 0.000 300.906 300.906 /usr/lib/python3.12/multiprocessing/queues.py:147(join_thread)
354 1.587 0.004 188.595 0.533 /usr/lib/python3.12/concurrent/futures/process.py:415(wait_result_broken_or_wakeup)
184 62.645 0.340 128.705 0.699 /usr/lib/python3.12/selectors.py:451(select)
1057 0.017 0.000 110.747 0.105 /usr/lib/python3.12/multiprocessing/connection.py:1122(wait)
1057 0.025 0.000 108.046 0.102 /usr/lib/python3.12/selectors.py:402(select)
380 97.451 0.256 97.451 0.256 {method 'dump' of '_pickle.Pickler' objects}
190 25.519 0.134 87.420 0.460 {built-in method time.sleep}
353 0.044 0.000 77.885 0.221 /usr/lib/python3.12/concurrent/futures/_base.py:199(as_completed)
1 1.872 1.872 58.850 58.850 /home/gep/projects/ws3/ws3/forest.py:1029(_gen_vars_m1)
348 6.866 0.020 46.064 0.132 /usr/lib/python3.12/multiprocessing/connection.py:246(recv)
729 0.009 0.000 38.524 0.053 /usr/lib/python3.12/multiprocessing/connection.py:182(send_bytes)
1057 6.164 0.006 36.126 0.034 {method 'poll' of 'select.poll' objects}
949 4.569 0.005 31.493 0.033 /usr/lib/python3.12/multiprocessing/connection.py:381(_send)
729 0.006 0.000 31.489 0.043 /usr/lib/python3.12/multiprocessing/connection.py:406(_send_bytes)
1 0.000 0.000 24.081 24.081 /usr/lib/python3.12/multiprocessing/queues.py:214(_finalize_join)
15392 0.262 0.000 23.443 0.002 /home/gep/projects/ws3/ws3/common.py:1109(paths)
348 22.085 0.063 22.085 0.063 {built-in method _pickle.loads}
Building problem with 64 workers
200475142 function calls (200343762 primitive calls) in 385.793 seconds
Ordered by: cumulative time
List reduced from 543 to 30 due to restriction <30>
ncalls tottime percall cumtime percall filename:lineno(function)
323 1.237 0.004 556.204 1.722 /usr/lib/python3.12/asyncio/base_events.py:1910(_run_once)
1 0.000 0.000 385.776 385.776 /home/gep/projects/ws3/ws3/forest.py:872(add_problem)
1 0.000 0.000 385.438 385.438 /home/gep/projects/ws3/ws3/forest_helper.py:347(__exit__)
1 0.019 0.019 385.438 385.438 /usr/lib/python3.12/concurrent/futures/process.py:864(shutdown)
519/514 0.002 0.000 385.385 0.750 /usr/lib/python3.12/threading.py:1153(_wait_for_tstate_lock)
2/1 1.965 0.982 385.383 385.383 /usr/lib/python3.12/threading.py:1115(join)
6975/2952 0.064 0.000 342.594 0.116 {method 'acquire' of '_thread.lock' objects}
2/1 0.000 0.000 341.896 341.896 /usr/lib/python3.12/threading.py:1016(_bootstrap)
2/1 0.001 0.000 341.896 341.896 /usr/lib/python3.12/threading.py:1056(_bootstrap_inner)
1 0.001 0.001 341.895 341.895 /usr/lib/python3.12/concurrent/futures/process.py:340(run)
1 0.000 0.000 341.895 341.895 /usr/lib/python3.12/concurrent/futures/process.py:574(join_executor_internals)
1 0.000 0.000 341.894 341.894 /usr/lib/python3.12/concurrent/futures/process.py:578(_join_executor_internals)
66 0.002 0.000 338.380 5.127 /usr/lib/python3.12/multiprocessing/util.py:208(__call__)
1 0.000 0.000 338.378 338.378 /usr/lib/python3.12/multiprocessing/queues.py:147(join_thread)
323 65.398 0.202 268.061 0.830 /usr/lib/python3.12/selectors.py:451(select)
1921 0.031 0.000 133.928 0.070 /usr/lib/python3.12/multiprocessing/connection.py:1122(wait)
1921 0.045 0.000 131.868 0.069 /usr/lib/python3.12/selectors.py:402(select)
1 1.052 1.052 126.511 126.511 /home/gep/projects/ws3/ws3/forest.py:1173(_cmp_cflw_m1)
642 0.585 0.001 116.736 0.182 /usr/lib/python3.12/concurrent/futures/process.py:415(wait_result_broken_or_wakeup)
700 104.076 0.149 104.076 0.149 {method 'dump' of '_pickle.Pickler' objects}
223 30.212 0.135 90.084 0.404 {built-in method time.sleep}
1337 0.022 0.000 61.920 0.046 /usr/lib/python3.12/multiprocessing/connection.py:182(send_bytes)
636 25.215 0.040 55.017 0.087 /usr/lib/python3.12/multiprocessing/connection.py:246(recv)
1 0.000 0.000 50.587 50.587 /usr/lib/python3.12/multiprocessing/queues.py:214(_finalize_join)
1921 8.294 0.004 49.576 0.026 {method 'poll' of 'select.poll' objects}
1 0.001 0.001 43.486 43.486 /usr/lib/python3.12/concurrent/futures/process.py:791(_launch_processes)
64 0.004 0.000 43.485 0.679 /usr/lib/python3.12/concurrent/futures/process.py:799(_spawn_process)
64 0.005 0.000 43.471 0.679 /usr/lib/python3.12/multiprocessing/process.py:110(start)
64 0.004 0.000 43.452 0.679 /usr/lib/python3.12/multiprocessing/context.py:279(_Popen)
64 0.002 0.000 43.447 0.679 /usr/lib/python3.12/multiprocessing/popen_fork.py:15(__init__)
4.7. Picking max_workers in ws3: quick guidance + deeper dive
This note summarizes what we learned from running the build-phase under cProfile at 1, 2, 4, 8, 16, 32, 64 workers. It has two parts:
Part A (quick start): practical advice for folks who just want a good
max_workersvalue.Part B (deep dive): how to read the
cProfileoutput, what’s actually fast vs slow, and what to tweak if you’re hacking on the parallel code.
4.7.1. Part A — Quick start (what number should I use?)
TL;DR for this dataset/machine
Our wall-time results (build phase only):
workers |
build wall time (s) |
|---|---|
1 |
407.8 |
2 |
390.4 |
4 |
294.2 |
8 |
301.2 |
16 |
276.5 ← best here |
32 |
324.3 |
64 |
385.8 |
Recommendation:
Start with ``max_workers=16`` on similar problem sizes/hardware.
If you have fewer physical cores, try half your cores (e.g., 8 on a 16-core box).
If you have many more cores (72–150), don’t jump straight to huge worker counts—diminishing returns and overhead kick in quickly.
When to reduce workers:
If you see more time spent with many workers than with fewer ones, drop to the smallest
Nnear the best time (here, 16).If the model is small, stick with serial (
max_workers=1)—parallel overhead can dominate.
HiGHS threads:
If you build and solve in the same session, don’t give both the builder and HiGHS all cores. Example: 16 build workers + 8 solver threads is often a good split.
4.7.2. Part B — Deep dive (reading the profile, tuning, and hacking)
4.7.2.1. 1) Interpreting the profiles
In good scaling regions (e.g., 4–16 workers above), the top cumulative-time frames are productive compute:
forest._bld_tree_m1(DFS tree construction)forest.compile_product,forest.apply_actioncommon.paths/common.pathYour coefficient functions (e.g.,
examples.util.cmp_c_*)
As you overshoot the sweet spot (32–64 workers above), overhead climbs into the top slots:
selectors.select,connection.wait,poll(multiprocessing pipes/queues)Pickler.dump/_pickle.loads(task/result serialization)threading._wait_for_tstate_lock/ massacquirecalls (contention)concurrent.futures.processjoin/shutdowntime.sleepbackoffs in the executorasyncio.base_events._run_once(Jupyter event loop noise)
When overhead frames rival or exceed your compute frames in the top 10 cumulative list, you’ve passed the knee of the curve.
4.7.2.2. 2) Choosing max_workers methodically
Run a small sweep:
1, 2, 4, 8, 16, 32(and 64 only if you must).Plot wall time vs workers (or just eyeball the printed numbers).
Pick the smallest worker count near the lowest wall time where compute still dominates the top of the profile.
In our run: 16.
A simple heuristic for first tries:
Small models: 1 (serial).
Medium: 4–8.
Large: 8–16.
Very large: try 16 first; 32 only if you see clear gains (rare on single machine unless tasks are very chunky and memory is ample).
4.7.2.3. 3) Batch sizing
We batch work per process to amortize scheduling and pickling costs. A practical rule:
```text batch_size ≈ len(tasks) // (2–4 * max_workers) + 1
[ ]:
